2S2P 7.4V/5.2Ah Li-ion battery pack for E-bike lighting

FOB Reference Price:Get Latest Price
US $14-20 / Piece | 2 Piece/Pieces (Min. Order)
Supply Ability:
100 Piece/Pieces per Month
Port:
shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
AYAA
Model Number:
AY-L15029
Composed Type:
2S2P
Type:
Li-Ion
Components:
li-lon
Size:
L68*W45*T38mm
Voltage:
7.4V
Weight:
250g~1KG
Nominal Capacity:
5.2Ah
Application:
E-bike lighting
PCM/BMS:
with PCM
Charging voltage:
8.4±0.05V
Charging method:
CC/CV
Charging current:
5.2A(0.5C)
Intermal resistance:
≤200mΩ
Packaging & Delivery
Packaging Details
with carton or be customize.
Delivery Time
within 13-15 working days

2S2P 7.4V/5.2Ah Li-ion battery pack for E-bike lighting

Product Description

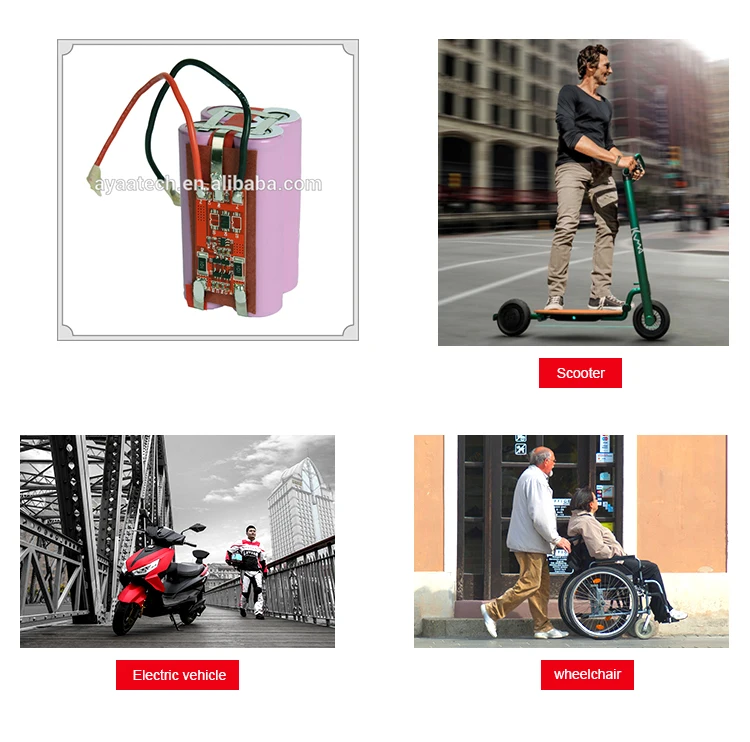

Product Picture

AYAA -Battery : Lithium Ion Battery, E-Bike Battery, Lifepo4 Battery, Polymer Battery Manufacturers.

Product Parameters

The part of the current product parameters, click on the Contact Supplier to know more information.

2S2P 7.4V/5.2Ah Li-ion battery pack for E-bike lighting

Model:AY-L15029

ltem

Sanctification

Remark

Nominal capacity

5.2Ah

Samsung 18650 3.7V/2.6Ah

Nominal voltage

7.4V

3.7V/1 Cell

Charging voltage

8.4±0.05V

4.2V/1 Cell

Charging method

CC/CV

(Constant-current and-Voltage with Limited current

Standard charging time

2000mA/4.5hours

Battery capacity÷charging current×1.5

Charging current

1.5A(0.5C)

0~+40

Maximum charging current

3A(1C)

0~+40

Continuous discharge current

1.5A(0.5C)

-20~+60

Discharge cutoff  voltage

5V

2.5V/1 Cell

Short circuit protection

Exterior short circuit

Automatic recovery

Intermal resistance

≤200mΩ

AC lmpedance 1kHz

Cycle life

≥500



Operating temperature

Standard Charge



0~+40



Standard Discharge

-20~+60



Outline dimension

L68*W45*T38mm

Length x wide x thickness

Pre-wired



Red=Positive,Black=Negative

Protection Circuit Module:PCM-L02S06-336

Maximal continuous charging current

3A



Maximal continuous Discharging current

3A



Over-charge detection voltage

4.25V±0.025V

Single cell

Over-charge release voltage

0.5S—2S

Single cell

Over-charge detection delay time

4.05±0.05V

Single cell

Over-discharge detection voltage

2.40V±0.062V

Single cell

Over-discharge release Voltage

3.0±0.10V

Single cell

Over-discharge detection delaytime

0.5S-2.0S

Single cell

Over-current detection

7±1A



Over-current delay time

5ms-20ms







And looking for other types, please contact usContact Supplier
Why Choose Us

What we did to improve the battery quality, We have always been able to repay customers with quality and service.

And looking for other types, please contact usContact Supplier
2017 Top Selling

2017 Top Selling Battery Packs, Click the corresponding image to view the product details.



Pack Method

10S6P

13S3P

2S1P

3S1P

Nominal capacity

20.4Ah

10.2Ah

3000mAh

2.6Ah

Nominal voltage

37V

48.1V

7.4V

11.1V

Charging voltage

42V±0.05V

54..6V

8.4V±0.05V

12.6±0.05V

Charging current

10A(0.5C)

2.04Ah

0.6A(0.2C)

1.3A(0.5C)

Max. Charge Current

20A(1C)

40A

1.5A(0.5C)

2.6A(1C)

Charge Method

CC/CV

CC/CV

CC/CV

CC/CV

Discharge cutoff  voltage

31.2V

32.5V

2.4V

7.2V

Cycle Life

≥500

≥500

≥500

≥500

Warranty

12

12

12

12

For more information, please contact usContact Supplier
company information

Welcome to visit our factory! Win-win cooperation.

Ayaa Technology Co., Ltd.

Ayaa was found by several battery engineers in 2006 and became PCM&BMS and customized battery pack manufacturers over years.
