Popular Customized Li Ion Battery Pack 50.4V 19.2Ah For Electric Motor Bicycle China

FOB Reference Price:Get Latest Price
US $90-150 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
50000 Piece/Pieces per Month
Port:
shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
AYAA
Model Number:
AYAA-14S6P
Composed Type:
14S6P
Type:
Li-ion
Components:
Li-ion
Size:
L270* W116*T70mm
Voltage:
50.4V
Weight:
Approx.4.3Kg
Nominal Capacity:
19.2Ah
Application:
Electric Bike
color:
bule
composition:
14S6P
Packaging & Delivery
Packaging Details
packing in white box or customize
Delivery Time
with in 15 days after confirm order

Popular Customized Li Ion Battery Pack 50.4V 19.2Ah For Electric Motor Bicycle China

Product Description

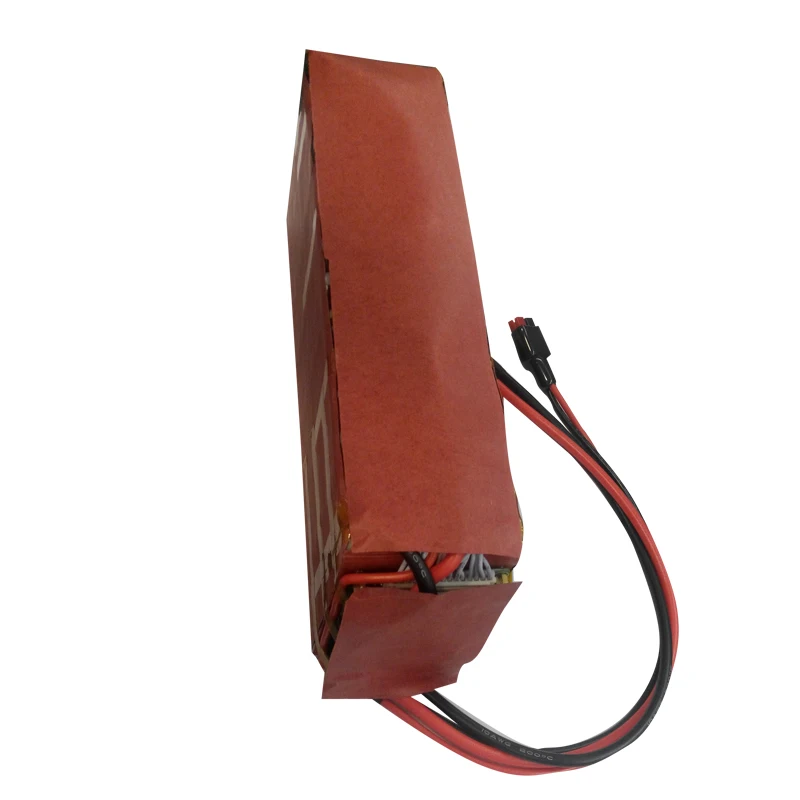

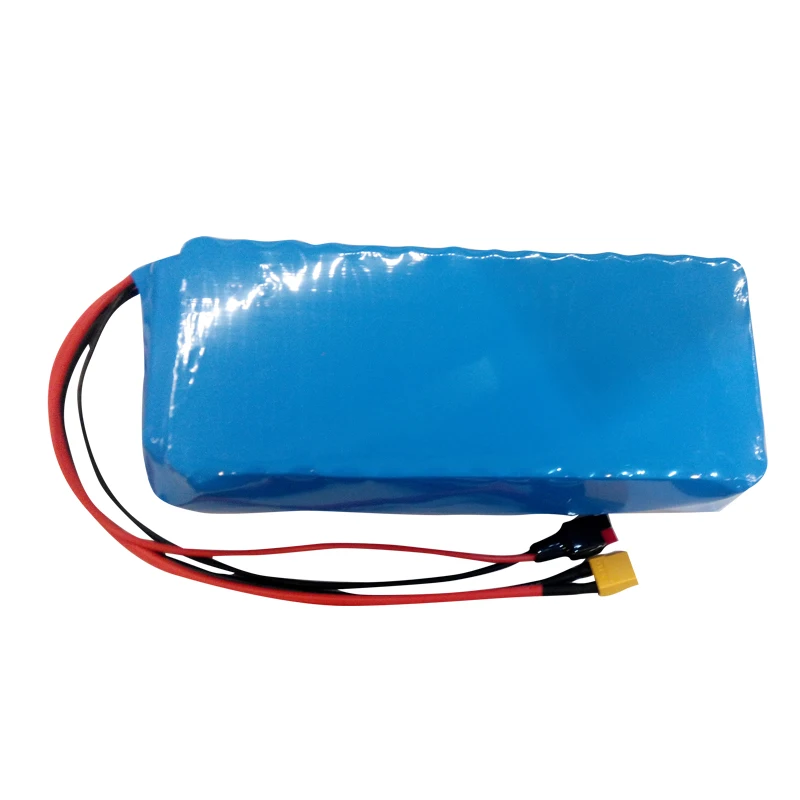

Product Picture

AYAA -Battery : Lithium Ion Battery, E-Bike Battery, Lifepo4 Battery, Polymer Battery Manufacturers.

Product Parameters

The part of the current product parameters, click on the Contact Supplier to know more information.

Item

Rating

Note



Cell parameters

















Type

Li-ion Battery



Cell Model

18650-3200mAh



Nominal Capacity

3000mAh

Discharge : 0.2C

Cut-off Voltage: 2.5V

Minimum Capacity

2950mAh

Discharge : 0.2C

Cut-off Voltage: 2.5V

Nominal voltage

3.7V



Internal Impedance

≤40mΩ



Dimension

Max. 18.5*65mm



Weight

Approx.49g



Batterypack













Pack Method

14S6P



Nominal Capacity

19.2Ah

Discharge : 0.2C

Cut-off Voltage:35V

Minimum Capacity

18.48Ah

Discharge : 0.2C

Cut-off Voltage: 35V

Nominal Voltage

50.4V



Charge Voltage

58.8V



Discharge cut-off voltage

35V



Charge Method

CC/CV



Standard Charge Current

3.84Ah

0.2C

Max. Charge Current

20A



Standard Discharge Current

3.84Ah

0.2C

Max. Continues Discharge current

20A



Cycle Life

300 times

80%

Internal Impedance

150mΩ

MAX

Dimension

L270* W116*T70mm

MAX

Output Wire





Output Connector

/

/

Weight

Approx.4.3Kg



Working Temperature Range

Charge: 0°C--45°C

Discharge: 0°C--45°C



Storage Temperature

0°C--45°C





And looking for other types, please contact usContact Supplier
Why Choose Us

What we did to improve the battery quality, We have always been able to repay customers with quality and service.

And looking for other types, please contact usContact Supplier
2017 Top Selling

2017 Top Selling Battery Packs, Click the corresponding image to view the product details.



Pack Method

10S6P

13S3P

2S1P

3S1P

Nominal capacity

20.4Ah

10.2Ah

3000mAh

2.6Ah

Nominal voltage

37V

48.1V

7.4V

11.1V

Charging voltage

42V±0.05V

54..6V

8.4V±0.05V

12.6±0.05V

Charging current

10A(0.5C)

2.04Ah

0.6A(0.2C)

1.3A(0.5C)

Max. Charge Current

20A(1C)

40A

1.5A(0.5C)

2.6A(1C)

Charge Method

CC/CV

CC/CV

CC/CV

CC/CV

Discharge cutoff  voltage

31.2V

32.5V

2.4V

7.2V

Cycle Life

≥500

≥500

≥500

≥500

Warranty

12

12

12

12

For more information, please contact usContact Supplier
company information

Welcome to visit our factory! Win-win cooperation.

Ayaa Technology Co., Ltd.

Ayaa was found by several battery engineers in 2006 and became PCM&BMS and customized battery pack manufacturers over years.

View details
Packing And Shipping

Contact us for more details about packing, shipping and discount.
