13s7p Li-ion battery pack With bluetooth mobile phone monitoring, with temperature switch

FOB Reference Price:Get Latest Price
US $21-30 / Pieces | 2 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
AYAA
Model Number:
AY-L054
Type:
Li-Ion
Nominal Voltage:
Other
Size:
Customized
Nominal Capacity:
2600mAh
PCM/BMS:
with PCM
Charging method:
CC/CV
SupplyAbility
SupplyAbility:
100 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
with carton or be customize.
Port
shenzhen
Lead Time :
within 13-15 working days

13s7p Li-ion battery pack With bluetooth mobile phone monitoring, with temperature switch

Product Description

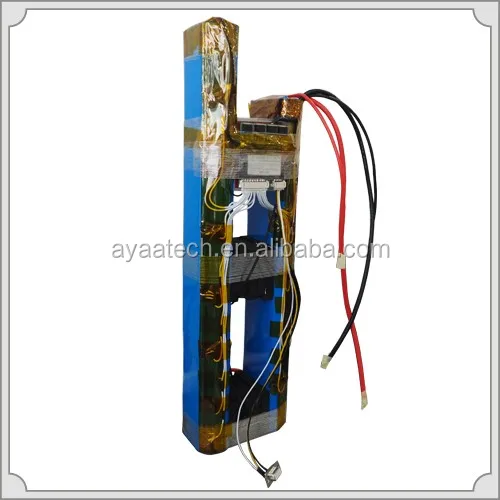

Product Picture

AYAA -Battery : Lithium Ion Battery, E-Bike Battery, Lifepo4 Battery, Polymer Battery Manufacturers.


Product Parameters

The part of the current product parameters, click on the Contact Supplier to know more information.

Parameter

Rating

unit

working temperature

-40~85

 ℃

Working environment humidity

< 85% RH

%RH

storage environment temperature

-40~125

storage environment Humidity

<85% RH

%RH

 rated charging voltage





max. charging voltage

75

V



Item

Content

Criterion

Over charge

 Protection

Over charge detection voltage

3.6~4.25V

Over charge detection delay time

0.1 S ~ 6S

Over charge release voltage

3.5~4.25V

Over discharge

protection

Over discharge detection voltage

2.0~3.3V

Over discharge detection delay time

0.1 S ~ 6S

Over discharge release voltage

2.1~3.4V

Charge

Over current protection

Charge Over current detection current

         1~100A

 Charge Over current detection delay time

0.02S~ 6S

Discharge

Over current

protection

Discharge Over current detection current

  1~300A

 Discharge Over current detection delay time

0.02S~ 6S



Short

protection

Short protection detection delay time

100 u S



Detection condition



Battery pack B + thrum of P - wiring short circuit or air switch to add 0.2 ohm resistance short-circuit



Cut load

Interior

Resistance

Main loop electrify resistance

10 (10A)

Currentconsumption

Current consume in normal operation

1mA Type

Currentconsumption

Current consume in sleep operation

0.2 uA Type

Charge and discharge protection at high temperature



 0 ℃~200℃

Charge and discharge heat recovery



0 ℃~200℃

Charge and discharge protection at low temperature



-60℃~60℃

Charge and discharge protection recovery at low temperature



-60℃~60℃

Balance voltage





3 ~ 4.35V

Balance current



  55mA

Rated discharging current



20A

Disconnection protection testing time



2

Disconnection protection recovery conditions



Repair wiring, otherwise, without charge and discharge







And looking for other types, please contact usContact Supplier
Why Choose Us

What we did to improve the battery quality, We have always been able to repay customers with quality and service.


And looking for other types, please contact usContact Supplier
2017 Top Selling

2017 Top Selling Battery Packs, Click the corresponding image to view the product details.



Pack Method

10S6P

13S3P

2S1P

3S1P

Nominal capacity

20.4Ah

10.2Ah

3000mAh

2.6Ah

Nominal voltage

37V

48.1V

7.4V

11.1V

Charging voltage

42V±0.05V

54..6V

8.4V±0.05V

12.6±0.05V

Charging current

10A(0.5C)

2.04Ah

0.6A(0.2C)

1.3A(0.5C)

Max. Charge Current

20A(1C)

40A

1.5A(0.5C)

2.6A(1C)

Charge Method

CC/CV

CC/CV

CC/CV

CC/CV

Discharge cutoff  voltage

31.2V

32.5V

2.4V

7.2V

Cycle Life

≥500

≥500

≥500

≥500

Warranty

12

12

12

12

For more information, please contact usContact Supplier
company information

Welcome to visit our factory! Win-win cooperation.


Ayaa Technology Co., Ltd.

Ayaa was found by several battery engineers in 2006 and became PCM&BMS and customized battery pack manufacturers over years.
