PCM For 12S Li-ion/Li-polymer/LiFePO4 Battery Pack

FOB Reference Price:Get Latest Price
US $10-30 / Pieces | 100 Piece/Pieces none (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
AYAA
Model Number:
PCM-L12S35-514 (12S)
Base Material:
SEIKO IC
Copper Thickness:
1/2OZ 1OZ 2OZ 3OZ
Board Thickness:
2mm
Min. Hole Size:
0.25mm
Min. Line Width:
3mi
Min. Line Spacing:
0.003"
Surface Finishing:
HASL
Colour of PCM:
green
SupplyAbility
SupplyAbility:
500000 Piece/Pieces per Month none
Packaging & Delivery
Packaging Details
With white box or customize
Port
shenzhen
Lead Time :
With in 15 days after confirmed order

PCM For 12S Li-ion/Li-polymer/LiFePO4 Battery Pack

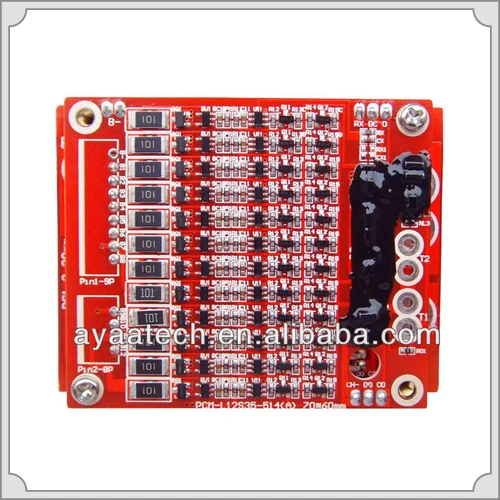

Protection Circuit Module For 12S Li-ion/Li-polymer/LiFePO4 Battery Pack

Model: PCM-L12S35-514(12S)

No.

Test item

Criterion

1

Voltage

Charging voltage

CC/CV:Li-ion/Li-polymer(4.2V/cell),LiFePO4(3.6V/cell)

Balance voltage for single cell

Li-ion:4.20 V±0.025V,LiFePO4:3.60V±0.025V

2

Current

Balance current for single cell

0~85mA

Current consumption for single cell

≤20μA

Maximal continuous charging and discharging current

Charging :15A,discharging:30A

3

Over-charge Protection

Over charge detection voltage

3.8~4.4V(can adjust)

Over charge detection delay time

0.5~2.5S

Over charge release voltage

3.8~4.4V(can adjust)

4

Over-discharge Protection

Over discharge detection voltage

1.9~3.1V(can adjust)

Over discharge detection delay time

50~300mS

Over discharge release voltage

1.9~3.1V(can adjust)

5

Over-Current Protection

Over current detection voltage

0.6V

Over current detection current

40~200A

Detection delay time

1~50ms

Release condition

Cut load

6

Short Protection

Detection condition

Exterior short circuit

Detection delay time

200-500us

Release condition

Cut load

7

Resistance

Protection circuitry(B- to P-)

≤20mΩ

8

Temperature

Operating temperature range

-40~+85°C

Storage temperature range

-40~+125°C

9

Size



L80*W60*T20mm






And looking for other types, please contact usContact Supplier
Why Choose Us

What we did to improve the battery quality, We have always been able to repay customers with quality and service.


And looking for other types, please contact usContact Supplier
2017 Top Selling

2017 Top Selling Battery Packs, Click the corresponding image to view the product details.



Pack Method

10S6P

13S3P

2S1P

3S1P

Nominal capacity

20.4Ah

10.2Ah

3000mAh

2.6Ah

Nominal voltage

37V

48.1V

7.4V

11.1V

Charging voltage

42V±0.05V

54..6V

8.4V±0.05V

12.6±0.05V

Charging current

10A(0.5C)

2.04Ah

0.6A(0.2C)

1.3A(0.5C)

Max. Charge Current

20A(1C)

40A

1.5A(0.5C)

2.6A(1C)

Charge Method

CC/CV

CC/CV

CC/CV

CC/CV

Discharge cutoff  voltage

31.2V

32.5V

2.4V

7.2V

Cycle Life

≥500

≥500

≥500

≥500

Warranty

12

12

12

12
