Rechargeable Li-ion Battery Pack 3.7v 2200 mAh

FOB Reference Price:Get Latest Price
US $21-30 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
AYAA
Model Number:
AYAA-1S6P
Composed Type:
1series 6parallel
Type:
Li-Ion
Components:
Other
Size:
110mmx 67mm x 22mm
Voltage:
3.7v
Weight:
210g
Nominal Capacity:
2200 mAh
Application:
electric vehicles
Color:
red
size:
110mmx 67mm x 22mm
composition:
1series 6parallel
SupplyAbility
SupplyAbility:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
White Carton or Customized
Port
shenzhen
Lead Time :
with in 15 days after confirm order

Rechargeable Li-ion Battery Pack 3.7v 2200 mAh

Product Description



Description

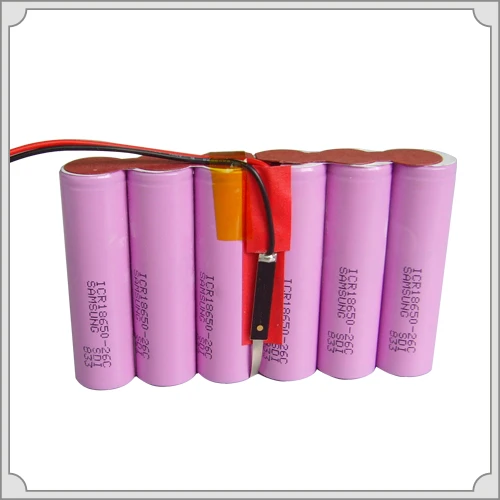

  • Li-ion Battery: 3.7V/15.6Ah (57.72 Wh,) with PCM
  • Battery:sumsung 18650 3.7V/2600MAH
  • Protected by 1 pcs  PCM (5A limited) located on the top
  • Battery pack is wrapped blue PVC

 Voltage

Voltage: 3.7V (working)   4.2 V (peak)

 Capacity

    15600 mAh (57.72Wh)

Cycle life

 > 1000 cycles (80% of initial capacity @ 0.2C rate, IEC Standard)

Protection +tupian

  • One PCM ( PCM-Li01S8-015) installed with the  battery pack and protects the battery from
    • Over charge detection voltage(4.325±0.025V)
    • Over discharge detection voltage  (2.50±0.05V)
    • Over current detection current ( 9.5±2A)
    • Short circuits



Must wait min of 30 minutes after battery is fully charged to allow the pcm to perform balance function on all the cells within the pack.

Pre-wired

  • Discharge terminal: 2" long 22AWG open wire end
    • Red wire = Positive
    • Black wire = Negative



Charging rate

   7.8A (0.5C)

Max. Discharging Rate

9.5A limited by 22AWG wire

Dimensions (LxWxH)

  110mmx 67mm x 22mm

Weight

300g

Warranty

Limited Warranty: Repair or exchange only within 30 days.
